Composite Brake Blocks

NON ASBESTOS BASED RAILWAY COMPOSITE BRAKE BLOCKS

Non Asbestos Composition Railway Brake Block is a rigid molded Product having short filaments of Synthetic Man made Mineral Fiber and organic Fibers with highly thermally stable Phenolic Powder Resin as a binder and fused in a matrix which contributes to the strength and performance in the terms of Friction / wear properties suitable for use in Diesel / Diesel-Electric / Hydrostatic Shunting / Main Line Locomotives, Freight & Rolling Stock . This product meets the requirement of U.I.C. Specification Dynamometer and in compliance with the European Conformance CE Mark

Summary

It is used in Air Brake Systems ( Radial Block / Tread Breaking ) for Rail Application

Average mean Co-efficient of friction for Design Purpose : As per customer standards & specification

Good Quality Forged Wheel / Cast Wheels / Tyred Wheel

200 Minimum : As per customer standards & certification

Carbide Tipped Tools are generally recommended for use on this material for Drilling, turning and boring.

  • Mix up of ‘K’ blocks and ‘L’ block.
  • Hammering the CBB on clamp or backplate.
  • Using improper brake heads ie., if the lugs of CBB do not seat in the grooves-discard.
  • Dropping blocks roughly while handling.
  • Removing blocks with minor cracks from service.
  • Storing the blocks on radius side.
  • Taper wearing of blocks along the arc.
  • Lug portion coming down from the head.

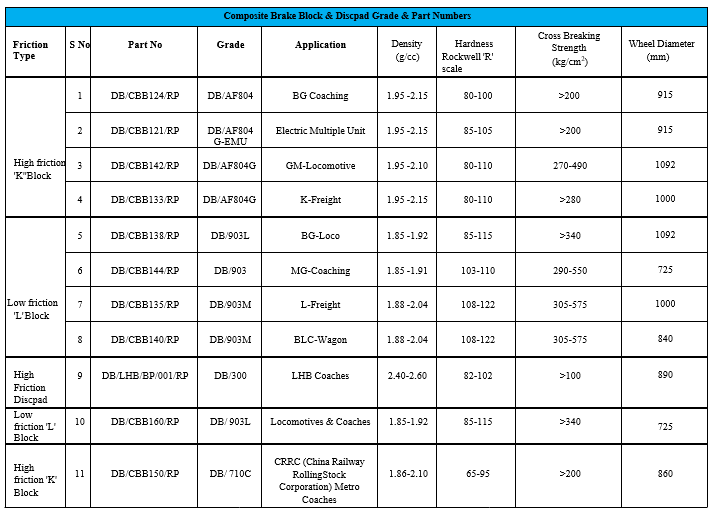

Composite Brake Block & Discpad Grade & Part Numbers
